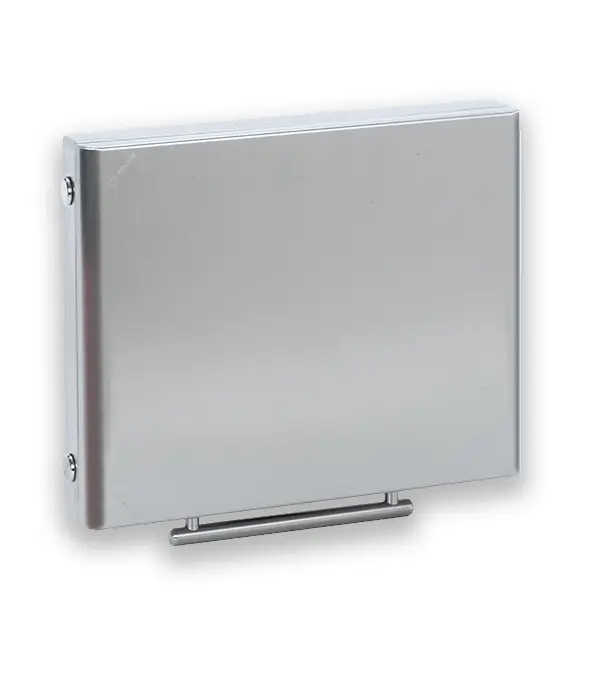

PENDANT CONTROL PANEL ENCLOSURES

KCS “SKIN” Series

  • Entirely made of AISI 304L stainless steel (Wnr 1.4307).
  • Fine external SATIN finish, medium ScotchBrite type.
  • To be used in combination with the “T” series system of load-bearing arms with the relative rotating joints, GM series, and fixed joints, GF series.
  • Designed for support with arms featuring a 48 mm and 60 mm diameter.
  • Can be assembled with the arm support on the lower or upper side.
  • The door can be opened to at least 120° with internal stainless steel hinges, side locks with stainless steel insert featuring a double flap.
  • Polyurethane seal with robotised application.
  • Ergonomic handle.
  • Sheet metal thickness values of the body and door from 12/10 mm to 15/10 mm depending on the size.

PLUS ON DEMAND FOR CUSTOMIZATION

Material: AISI 316L (Wnr 1.4404)
Drilling: as per
drawing
Dimensions: specials
Seals: silicone

ART. CODEEXTERNAL DIMENSIONSFEATURES
WHDNo. CLOSING POINTSNo. HANDLESSHELVES
KCS40301040030010011 bottom onefor Ø 48 joint
KCS45351045035010011 bottom onefor Ø 48 joint
KCS50401050040010021 bottom onefor Ø 60 joint
KCS50501050050010022 side onesfor Ø 60 joint
KCS60401060040010021 bottom onefor Ø 60 joint
KCS60501060050010022 side onesfor Ø 60 joint
