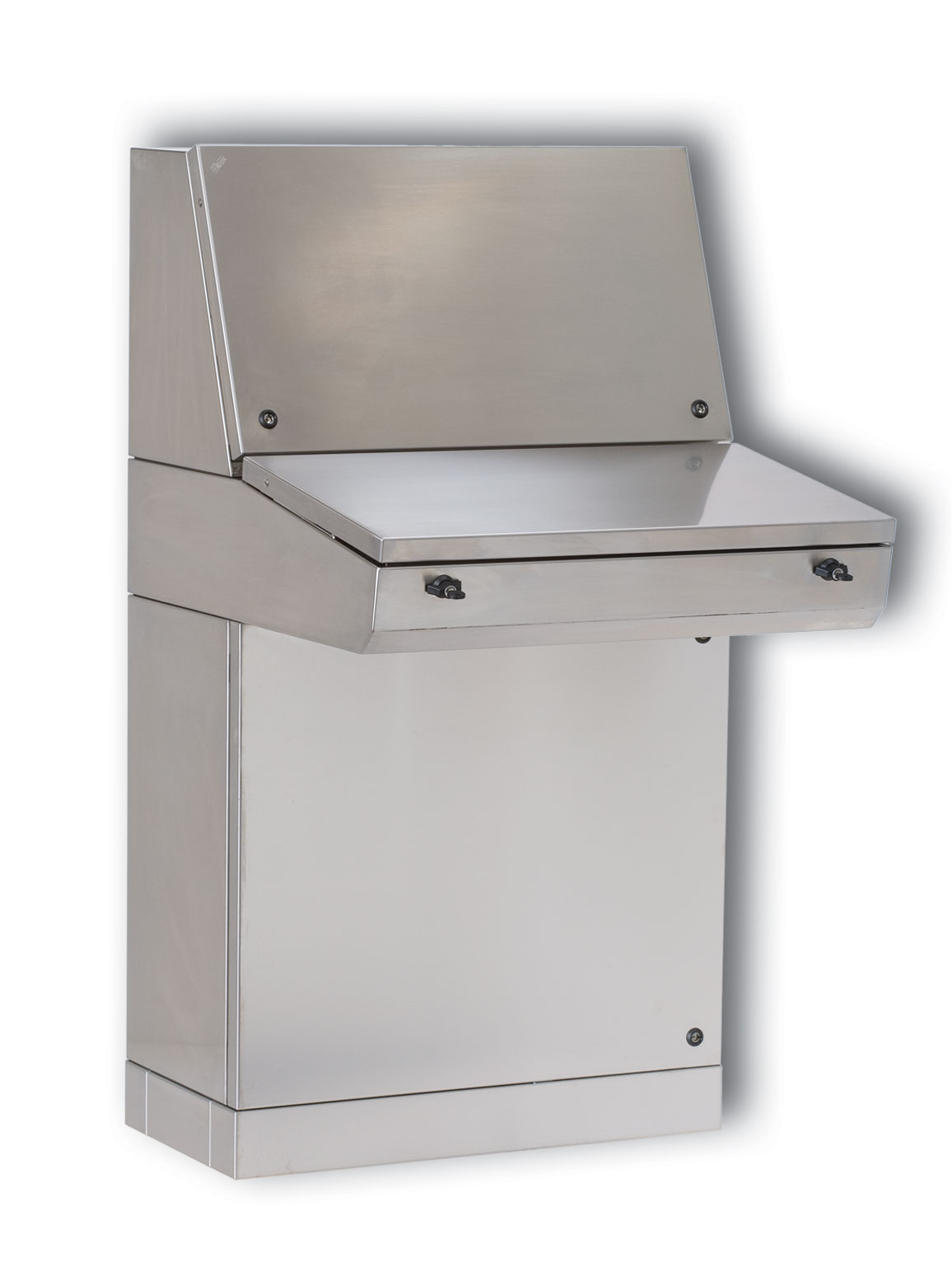

LE SERIES – SLOPED TOP ELECTRICAL ENCLOSURES – 3 PARTS
LE SERIES
- Made of AISI 304L stainless steel (Wnr 1.4307).
- NEMA type 1, 12, 4, 4X on specific demand; Standard for Safety: UL 508A, Industrial Control Panels CSA C22.2 No. 14-13, Industrial Control Equipment
- Self-supporting frame consisting of 3 parts (top, middle and bottom) screwed together.
- Fine external SATIN finish, medium Scotch-Brite type.

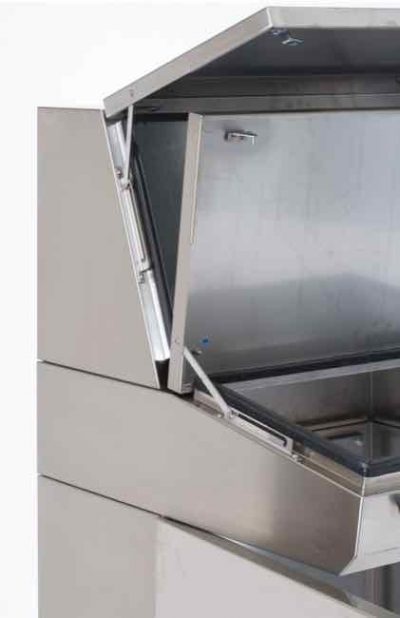

- No. 01 slanting openable shelf at the top and in the middle with hinges from the bottom upwards with gas springs or supporting rods.
- No. 02 wiring plates in hot-galvanised sheet fixed internally to the back with stainless steel threaded stud bolts.
- No. 01 airtight cable lead plate on the bottom between the sloped-top body and plinth (2 for width 1200).
- No. 01 demountable plinth H=100 mm (replaceable with other types of plinth).
- Polyurethane seal or EPDM.
OPTIONALS UPON REQUEST
Material: AISI 316L (Wnr 1.4404).
Drilling: as per drawing on door, top, sides.
Dimensions: specials.
Seals: silicone.
