CHD SERIES – HYGIENIC WATERTIGHT ELECTRICAL BOXES

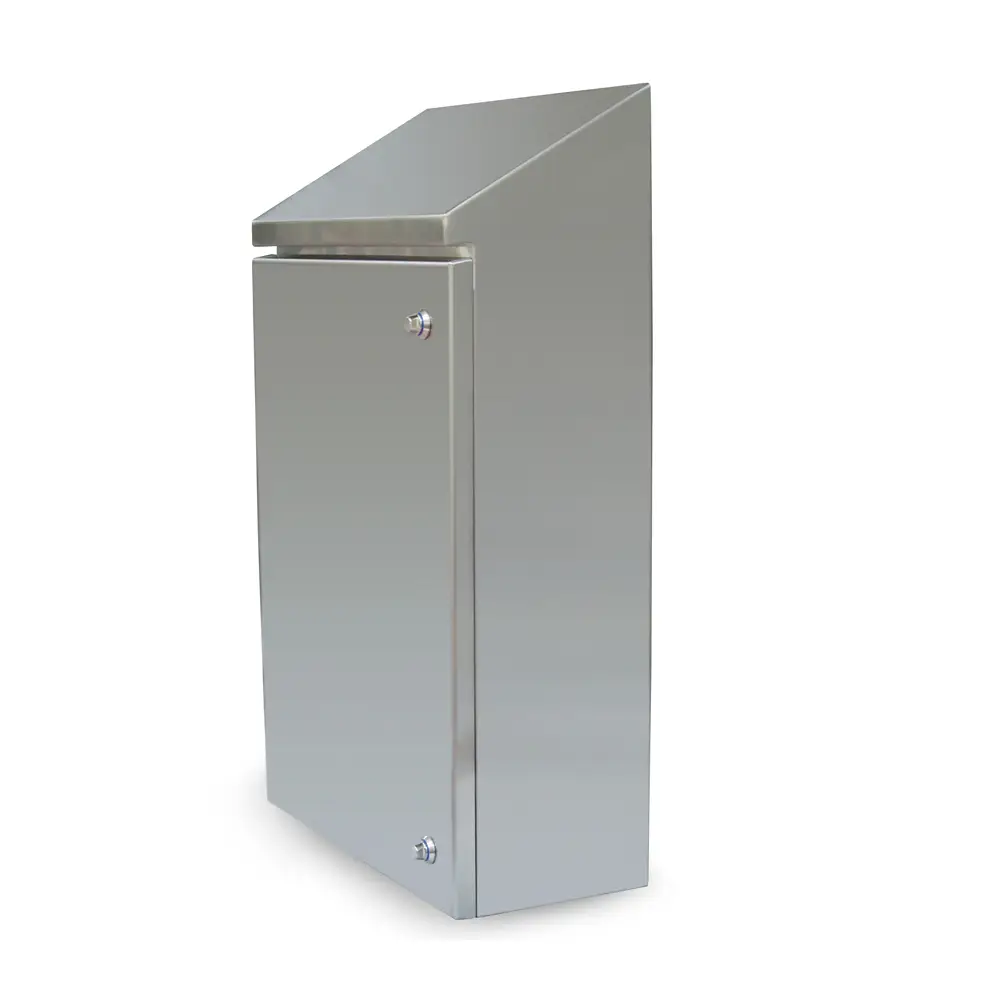

WATERTIGHT BOXES IN STAINLESS STEEL FOR FOOD SECTOR

CHD SERIES

Made in AISI 304L (Wnr 1.4307) stainless steel.
Sloped roof made of integrated panel at 30° forward.
Surface finishing with extreme low roughness at RA < 0.3 µ.
Without inserts/holes on the back.
Door with sloped edges and internal hinges with opening at 120° on the left-hands side (reversible on demand).
Roboter-layed polyurethane sealing ring.
Hygienc locks (1 or 2, according to the size).
Mounting plate in zinc coated metal sheet.

PLUS ON DEMAND FOR CUSTOMIZATION

Material: AISI 316L (Wnr 1.4404)
Dimensions: special

ART. CODE		EXTERNAL DIMENSIONS			MOUNTING PLATE			FEATURES
	W	H	D	HT	X	Y	No. LOCKING POINTS	No. SUPPORTING POINTS	No. OF HINGES	FIXING DISTANCE (I)
CHD253021	250	300	210	460	190	266	1	4	2	220
CHD383821	380	380	210	540	320	346	1	4	2	300
CHD386021	380	600	210	760	320	566	2	4	2	520
CHD454521	450	450	210	610	390	416	2	4	2	370
CHD456021	450	600	210	760	390	566	2	4	2	520
CHD606021	600	600	210	760	540	566	2	4	2	520
CHD604525	600	450	250	635	566	390	2	4	2	370
CHD606025	600	600	250	785	540	566	2	4	2	520
CHD806030	800	600	300	815	740	566	2	6	3	520
CHD808030	800	800	300	1015	740	766	2	6	3	720
CHD8010030	800	1000	300	1215	740	966	2	6	3	920
CHD8012030	800	1200	300	1415	740	1166	2	6	3	1120

COMPATIBLE ACCESSORIES
