STAINLESS STEEL MODULAR ENCLOSURE WITH SOLID DOOR
SPD SERIES
- Made of AISI 304L stainless steel (Wnr 1.4307).
- NEMA type 1, 12, 4, 4X on specific demand; Standard for Safety: UL 508A, Industrial Control Panels CSA C22.2 No. 14-13, Industrial Control Equipment
- Self-supporting composite frame + trestles 20/10 thick bent and drilled to DIN 25mm pitch,can be paneled on all sides.
- Reversible front door.
- Fine external satin finish, medium Scotch-Brite type.
- Wiring plate in 25/10 thick galvanised sheet sliding in depth with bigger wiring surface, insertion system on slides and quick fi x device in the final position.
- Not removable rear panel and over top.
- Polyurethane seal with robotised application.
- Eyebolt lifting system.

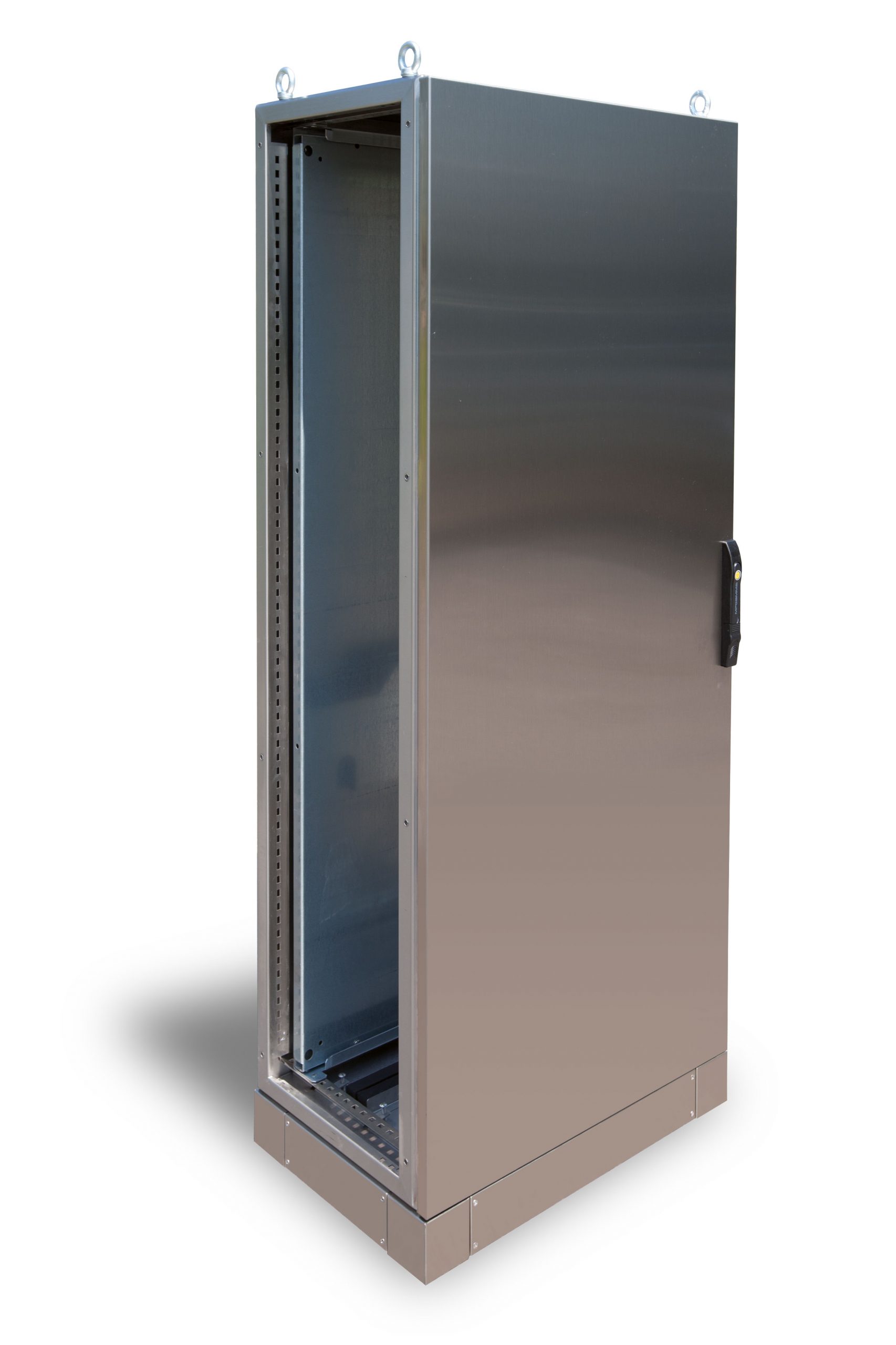

- 1 door version for widths up to 1000 mm.

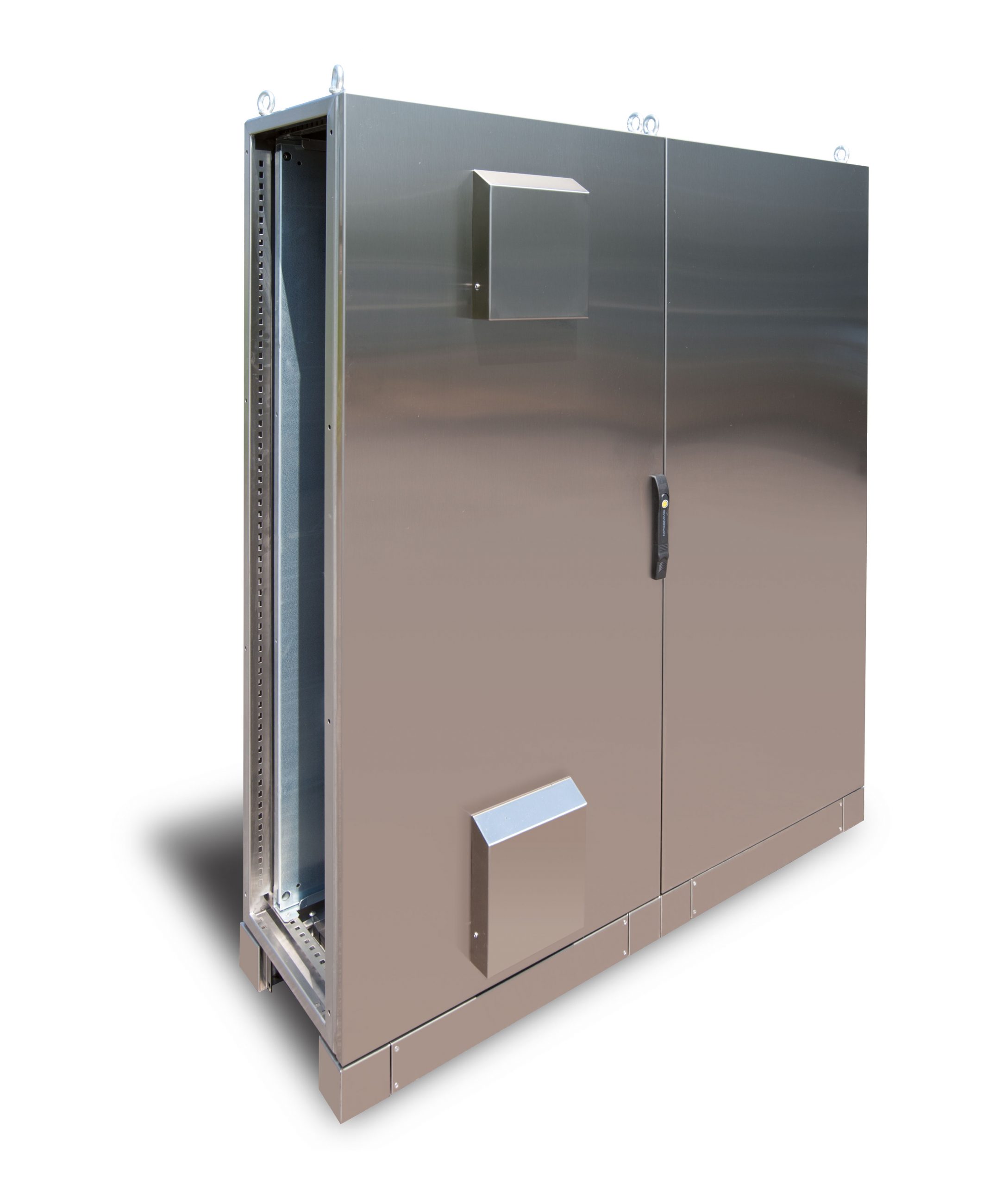

- 2-doors version with central closing, with or without removable central upright for widths >1000 mm.
PLUS ON DEMAND FOR CUSTOMIZATION
Material: AISI 316L (Wnr 1.4404).
Drilling: as per drawing on top and sides.
Dimensions: specials.
Seals: silicone.
CODE ART. | NOMINAL DIMENSIONS | DOORS NO. | MAX DIMENSIONS | ENTRY USEFUL DIMENSIONS | WIRING PLATE DIMENSIONS (INCLUDED) | FRONT DOOR DRILLING DIMENSIONS | FRONT DOOR DIMENSIONS | LATERAL PANEL DRILLING DIMENSIONS | USEFUL THICKNESS FOR PLATES’S LATERAL ENTRY | USEFUL THICKNESS FOR PLATE’S FRONT ENTRY | DRILLING DIMENSION FOR BOTTOM FLANGE |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
W | H | D | MW | MH | W1 | H1 | W2 | H2 | W3 | W4 | H4 | H5 | D5 | D7 | D8 | W9 | D9 | ||
SPD06018040 | 600 | 1800 | 400 | 1 | 605 | 1800 | 504 | 1700 | 500 | 1700 | 440 | 602 | 1790 | 1685 | 250 | 258 | 350 | 366 | 210 |
SPD06018050 | 600 | 1800 | 500 | 1 | 605 | 1800 | 504 | 1700 | 500 | 1700 | 440 | 602 | 1790 | 1685 | 350 | 358 | 450 | 366 | 310 |
SPD06018060 | 600 | 1800 | 600 | 1 | 605 | 1800 | 504 | 1700 | 500 | 1700 | 440 | 602 | 1790 | 1685 | 450 | 458 | 550 | 366 | 410 |
SPD06020050 | 600 | 2000 | 500 | 1 | 605 | 2000 | 504 | 1900 | 500 | 1900 | 440 | 602 | 1990 | 1885 | 350 | 358 | 450 | 366 | 310 |
SPD06020060 | 600 | 2000 | 600 | 1 | 605 | 2000 | 504 | 1900 | 500 | 1900 | 440 | 602 | 1990 | 1885 | 450 | 458 | 550 | 366 | 410 |
SPD08018040 | 800 | 1800 | 400 | 1 | 805 | 1800 | 704 | 1700 | 700 | 1700 | 640 | 802 | 1790 | 1685 | 250 | 258 | 350 | 566 | 210 |
SPD08018050 | 800 | 1800 | 500 | 1 | 805 | 1800 | 704 | 1700 | 700 | 1700 | 640 | 802 | 1790 | 1685 | 350 | 358 | 450 | 566 | 310 |
SPD08018060 | 800 | 1800 | 600 | 1 | 805 | 1800 | 704 | 1700 | 700 | 1700 | 640 | 802 | 1790 | 1685 | 450 | 458 | 550 | 566 | 410 |
SPD08020050 | 800 | 2000 | 500 | 1 | 805 | 2000 | 704 | 1900 | 700 | 1900 | 640 | 802 | 1990 | 1885 | 350 | 358 | 450 | 566 | 310 |
SPD08020060 | 800 | 2000 | 600 | 1 | 805 | 2000 | 704 | 1900 | 700 | 1900 | 640 | 802 | 1990 | 1885 | 450 | 458 | 550 | 566 | 410 |
SPD10018050 | 1000 | 1800 | 500 | 1 | 1005 | 1800 | 904 | 1700 | 900 | 1700 | 840 | 1002 | 1790 | 1685 | 350 | 358 | 450 | 766 | 310 |
SPD10018060 | 1000 | 1800 | 600 | 1 | 1005 | 1800 | 904 | 1700 | 900 | 1700 | 840 | 1002 | 1790 | 1685 | 450 | 458 | 550 | 766 | 410 |
SPD10020050 | 1000 | 2000 | 500 | 1 | 1005 | 2000 | 904 | 1900 | 900 | 1900 | 840 | 1002 | 1990 | 1885 | 350 | 358 | 450 | 766 | 310 |
SPD10020060 | 1000 | 2000 | 600 | 1 | 1005 | 2000 | 904 | 1900 | 900 | 1900 | 840 | 1002 | 1990 | 1885 | 450 | 458 | 550 | 766 | 410 |
CODE ART. | NOMINAL DIMENSIONS | DOORS NO. | MAX DIMENSIONS | ENTRY USEFUL DIMENSIONS | WIRING PLATE DIMENSIONS (INCLUDED) | FRONT DOOR DRILLING DIMENSIONS | FRONT DOOR DIMENSIONS | LATERAL PANEL DRILLING DIMENSIONS | USEFUL THICKNESS FOR PLATES’S LATERAL ENTRY | USEFUL THICKNESS FOR PLATE’S FRONT ENTRY | DRILLING DIMENSION FOR BOTTOM FLANGE |
|||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
W | H | D | WM | HM | W1 | H1 | W2 | H2 | W3 | H3 | W4 | H4 | H5 | D5 | D7 | D8 | W9 | D9 | ||
SPD12018040 | 1200 | 1800 | 400 | 2 | 1210 | 1800 | 1109 | 1700 | 1100 | 1700 | 440 | 1600 | 602 | 1790 | 1685 | 250 | 258 | 350 | 366 | 210 |
SPD12018050 | 1200 | 1800 | 500 | 2 | 1210 | 1800 | 1109 | 1700 | 1100 | 1700 | 440 | 1600 | 602 | 1790 | 1685 | 350 | 358 | 450 | 366 | 310 |
SPD12018060 | 1200 | 1800 | 600 | 2 | 1210 | 1800 | 1109 | 1700 | 1100 | 1700 | 440 | 1600 | 602 | 1790 | 1685 | 450 | 458 | 550 | 366 | 410 |
SPD12020050 | 1200 | 2000 | 500 | 2 | 1210 | 2000 | 1109 | 1900 | 1100 | 1900 | 440 | 1800 | 602 | 1990 | 1885 | 350 | 358 | 450 | 366 | 310 |
SPD12020060 | 1200 | 2000 | 600 | 2 | 1210 | 2000 | 1109 | 1900 | 1100 | 1900 | 440 | 1800 | 602 | 1990 | 1885 | 450 | 458 | 550 | 366 | 410 |
CODE ART. | NOMINAL DIMENSIONS | DOORS NO. | MAX DIMENSIONS | ENTRY USEFUL DIMENSIONS | WIRING PLATE DIMENSIONS (INCLUDED) | FRONT DOOR DRILLING DIMENSIONS | FRONT DOOR DIMENSIONS | LATERAL PANEL DRILLING DIMENSIONS | USEFUL THICKNESS FOR PLATES’S LATERAL ENTRY | USEFUL THICKNESS FOR PLATE’S FRONT ENTRY | DRILLING DIMENSION FOR BOTTOM FLANGE |
|||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
W | H | D | MW | MH | W1 | H1 | W2 | H2 | W3 | H3 | W4 | H4 | H5 | D5 | D7 | D8 | W9 | D9 | ||
SPD12018040CM | 1200 | 1800 | 400 | 2 | 1210 | 1800 | 1109 | 1700 | 1100 | 1700 | 440 | 1600 | 602 | 1790 | 1685 | 250 | 245 | 337 | 366 | 210 |
SPD12018050CM | 1200 | 1800 | 500 | 2 | 1210 | 1800 | 1109 | 1700 | 1100 | 1700 | 440 | 1600 | 602 | 1790 | 1685 | 350 | 345 | 437 | 366 | 310 |
SPD12018060CM | 1200 | 1800 | 600 | 2 | 1210 | 1800 | 1109 | 1700 | 1100 | 1700 | 440 | 1600 | 602 | 1790 | 1685 | 450 | 445 | 537 | 366 | 410 |
SPD12020050CM | 1200 | 2000 | 500 | 2 | 1210 | 2000 | 1109 | 1900 | 1100 | 1900 | 440 | 1800 | 602 | 1990 | 1885 | 350 | 345 | 437 | 366 | 310 |
SPD12020060CM | 1200 | 2000 | 600 | 2 | 1210 | 2000 | 1109 | 1900 | 1100 | 1900 | 400 | 1800 | 602 | 1990 | 1885 | 450 | 445 | 537 | 366 | 410 |
