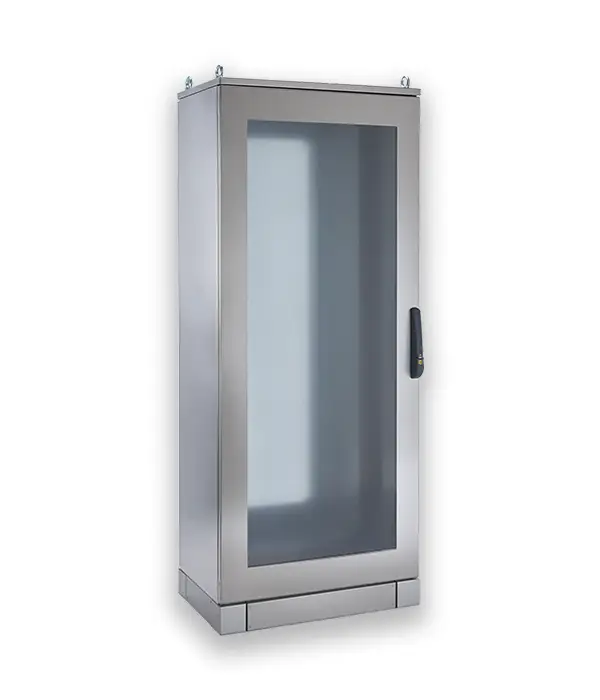

INTEGRATED COMPACT ENCLOSURES – STAINLESS STEEL – TRANSPARENT DOOR

SLS SERIES

  • Made of AISI 304L stainless steel (Wnr 1.4307).
  • NEMA type 1, 12, 4, 4X on specific demand; Standard for Safety: UL 508A, Industrial Control Panels CSA C22.2 No. 14-13, Industrial Control Equipment
  • Self-supporting frame 15/10 thick, bent and reinforced on the supporting points.
  • Stiffening frame on the inside of the door in strong galvanised carbon steel, tube and predrilled to DIN 25 mm pitch for fixing accessories.
  • Reversible front door with a strong transparent panel in shock-resistant LEXAN with opening a maximum 120°.
  • Fine external satin finish, medium Scotch-Brite type.
  • Wiring plate in 25/10 thick galvanised sheet sliding in depth with bigger wiring surface, insertion system on slides and quick fix device in the final position.
  • Removable rear panel and over top.
  • Polyurethane seal with robotised application.
  • Eyebolt lifting system.
  • 1 door version for widths up to 1000 mm.
  • 2 door separate versions with central closing (hinges on the structure), removable centre upright for widths 1200 mm and 1600 mm.
  • Protection class IP66, IP69, IK10  certified by TÜV SÜD according to EN 62208.

PLUS ON DEMAND FOR CUSTOMIZATION

Material: AISI 316L (Wnr 1.4404).
Drilling: as per drawing on top and sides.
Dimensions: specials.
Seals: silicone.

Code Art.Nominal
Dimensions
Doors-No.Max
dimensions
Transparent door dimensionsInner door dimensionsEntry useful
dimensions
Wiring plate
dimensions
(included)
Front door
dimension
Lateral
drilling
dimension
Useful depth
for plate
and door
Drilling dimension for
bottom flange
WHDWMMHWVHVWKHKW1H1W2H2W4H4H5D5D8W9D9
SLS6018040600180040016051827400156049516905041700500170060217901670290335365210
SLS8018040800180040018051827600156069516907041700700170080217901670290335565210
SLS8018050800180050018051827600156069516907041700700170080217901670390435565310
SLS8020050800200050018052027600176069518907041900700190080219901870390435565310
Code Art.Nominal
Dimensions
DoorsNo.Max
dimensions
Transparent door dimensionsInner door dimensionsEntry useful
dimensions
Wiring plate
dimensions
(included)
Front door
dimension
Lateral
drilling
dimension
Useful depth
for plate
and door
Drilling dimension for
bottom flange
WHDWMMHWVHVWKHKW1H1W2H2W4H4H5D5D8W9D9
SLS1201805012001800500** 2 CM1210182740015604951690120917001105170060217901670390435365310
SLS1202005012002000500** 2 CM1210202760017604951890120919001105190060219901870390435365310
SLS1601805016001800500** 2 CM1610182760015606951690160917001505170080217901670390435565310
SLS1602005016002000500** 2 CM1610202760017606951890160919001505190080219901870390435565310
**2 CM = 2 doors separate with removable centre upright
