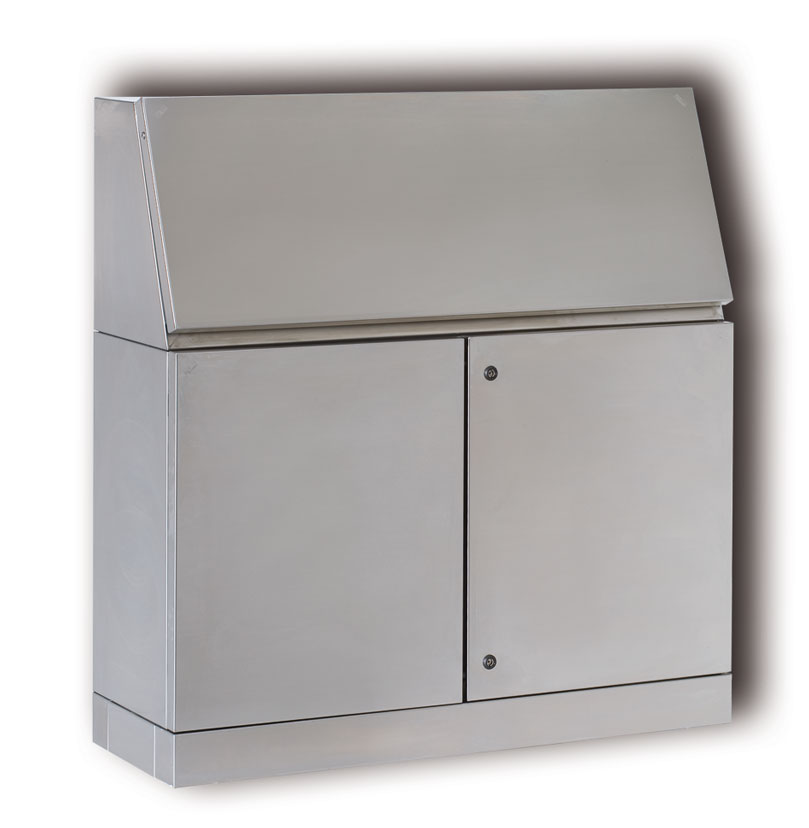

LC SERIES – SLOPED-TOP ENCLOSURES – 2 PARTS

SLOPED-TOP ENCLOSURES FOR ELECTRICAL PANELS – 2 PARTS TOP AND BOTTOM

LC SERIES

• Made of AISI 304L stainless steel (Wnr 1.4307).
• Self-supporting frame consisting of 2 parts (top and bottom) screwed together.
• NEMA type 1, 12, 4, 4X on specific demand; Standard for Safety: UL 508A, Industrial Control Panels CSA C22.2 No. 14-13, Industrial Control Equipment
• Fine external SATIN finish, medium Scotch-Brite type.

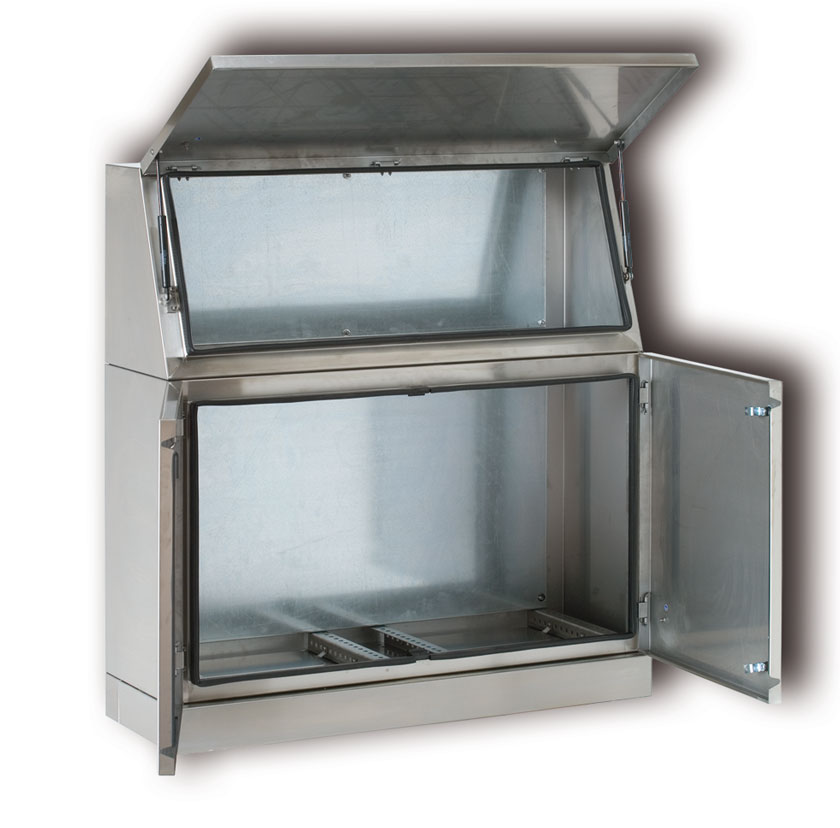

• No. 01 slanting openable shelf at the top with hinges from the bottom upwards with gas springs or supporting rods.
• No. 01 bottom reversible door (2 without centre upright for width 1200) with hinge, opening 120°.
• No. 02 wiring plates in hot-galvanised sheet fixed internally to the back with stainless steel threaded stud bolts.
• No. 01 airtight cable lead plate on the bottom between the slopedtop body and plinth (2 for width 1200).
• No. 01 demountable plinth H=100 mm (replaceable with other types of plinth).
• Polyurethane seal or EPDM.

OPTIONALS UPON REQUEST

Material: AISI 316L (Wnr 1.4404).
Drilling: as per drawing on door, top, sides
Dimensions: specials.
Seals: silicone.
