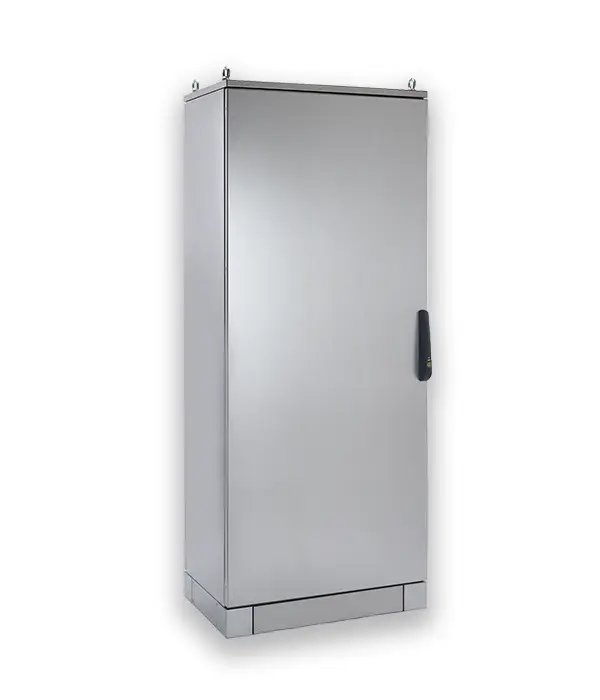

SCS SERIES ENCLOSURES IN STAINLESS STEEL – SOLID DOOR IP66 IP69 IK10

INTEGRATED COMPACT ENCLOSURES IN STAINLESS STEEL – SOLID DOOR

SCS SERIES

• Made of AISI 304L stainless steel (Wnr 1.4307).
• NEMA type 1, 12, 4, 4X on specific demand; Standard for Safety: UL 508A, Industrial Control Panels CSA C22.2 No. 14-13, Industrial Control Equipment
• Self-supporting frame 15/10 thick, bent and reinforcedon the supporting points.
• Stiffening frame on the inside of the door in strong galvanised carbon steel, tube and predrilled to DIN 25 mm pitch for fixing accessories.
• Reversible front door opening a maximum 120°.
• Fine external satin finish, medium Scotch-Brite type.

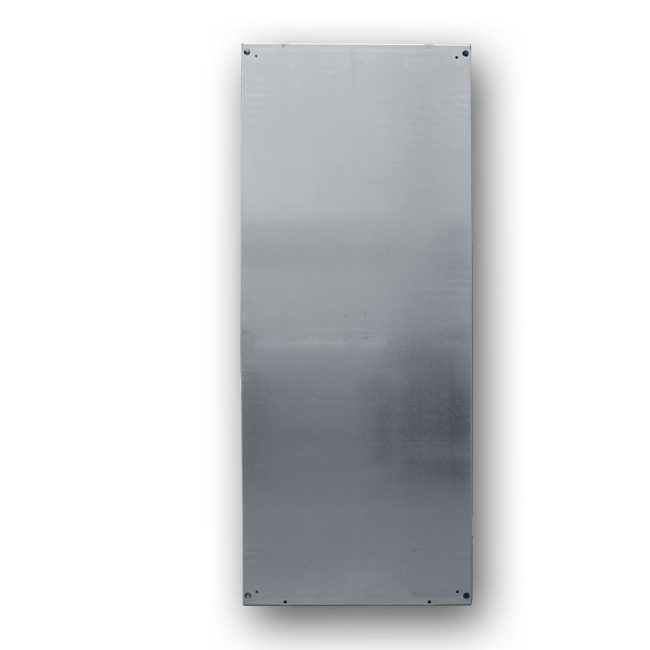

• Wiring plate in 25/10 thick galvanised sheet sliding in depth with bigger wiring surface, insertion system on slides and quick fix device in the final position.
• Removable rear panel and over top.
• Polyurethane seal with robotised application.
• Eyebolt lifting system.
• 1 door version for widths up to 1000 mm.
• 2 doors separate versions with central closing (hinges on the structure), removable centre upright for width 1600 mm.
• 2 door version without centre upright for cabinets W=1200 for easy access at the front; the doors are hinged, one over the other, hence they have an opening priority and the ergonomic handle is only contemplated on the primary door.
• Protection class IP66, IP69, IK10 certified by TÜV SÜD according to EN 62208.

PLUS ON DEMAND FOR CUSTOMIZATION

Material: AISI 316L (Wnr 1.4404).
Drilling: as per drawing on door, top and sides.
Dimensions: specials.
Seals: silicone.
