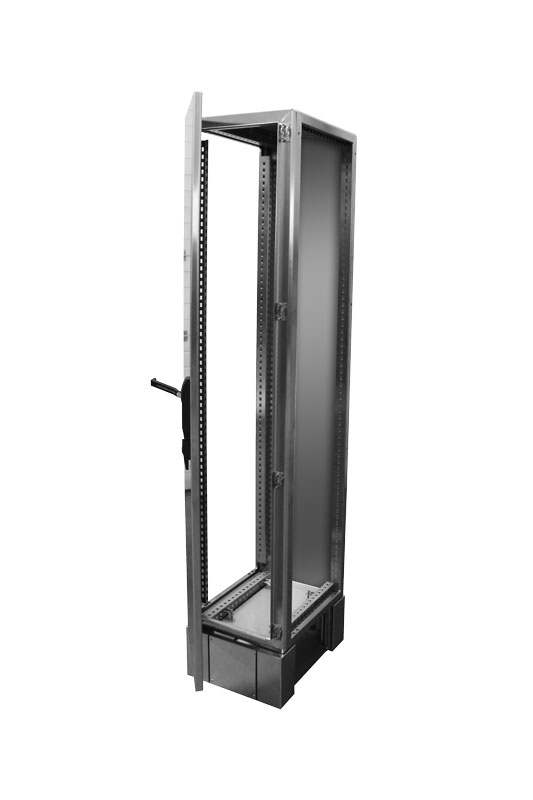

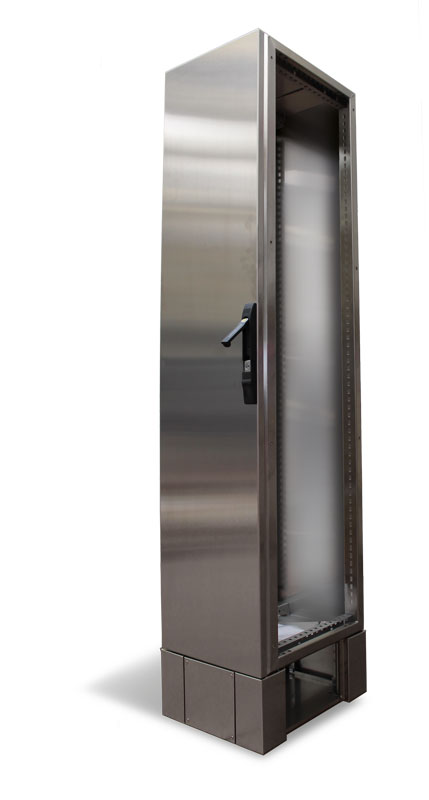

CABLE RISES TO SUPPORT STAINLESS STEEL MODULAR
ENCLOSURES
SRCM SERIES
- Made of AISI 304L stainless steel (Wnr 1.4307).
- NEMA type 1, 12, 4, 4X on specific demand; Standard for Safety: UL 508A, Industrial Control Panels CSA C22.2 No. 14-13, Industrial Control Equipment
- Self-supporting composite frame + trestles 20/10 thick bent and drilled
- Can be panelled on all sides.
- Reversible front door that opens maximum 120°.
- Fine external satin finish, medium Scotch-Brite type.
- Rear panel integrated in the supporting frame.
- Polyurethane seal with robotised application.
- Uprights prepared for side-by-side mounting kit.
- Side fall-protection system (optional).
- Investment-cast hinge.
- 6-bend profiles for increased structural strength.
- Contact flap on gasket bent at 30° for improved door sealing up to IP67.
- Handle with linear movement and integrated latch. The handle slide is easily interchangeable with a logo-free version, and the internal lock block is interchangeable with other types of locks.
- Torx screws that restrict access to unauthorized personnel.
PLUS ON DEMAND FOR CUSTOMIZATION
Material: AISI 316L (Wnr 1.4404).
Drilling: as per drawing on door and side panels.
Dimensions: specials.
Seals: silicone.

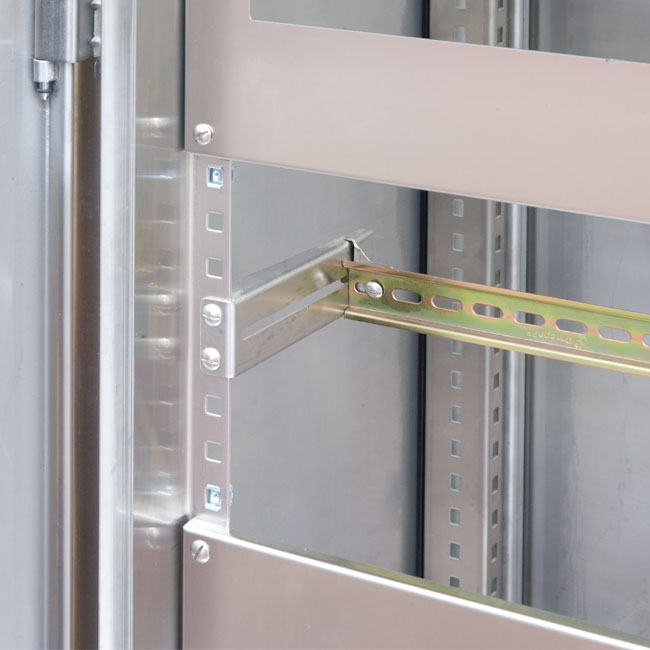

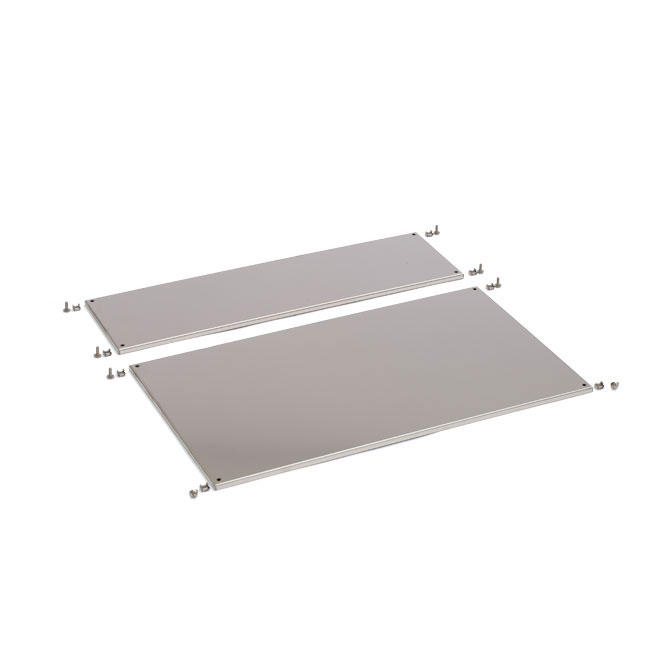

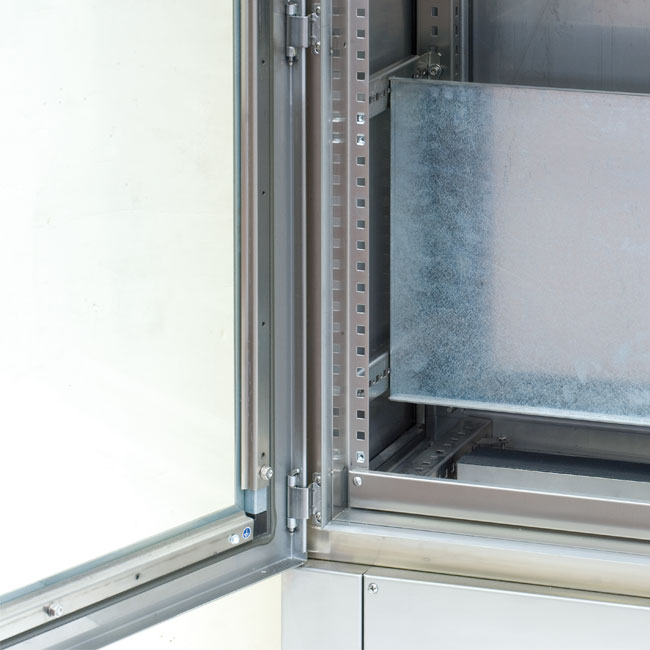

COMPATIBLE ACCESSORIES
